Description

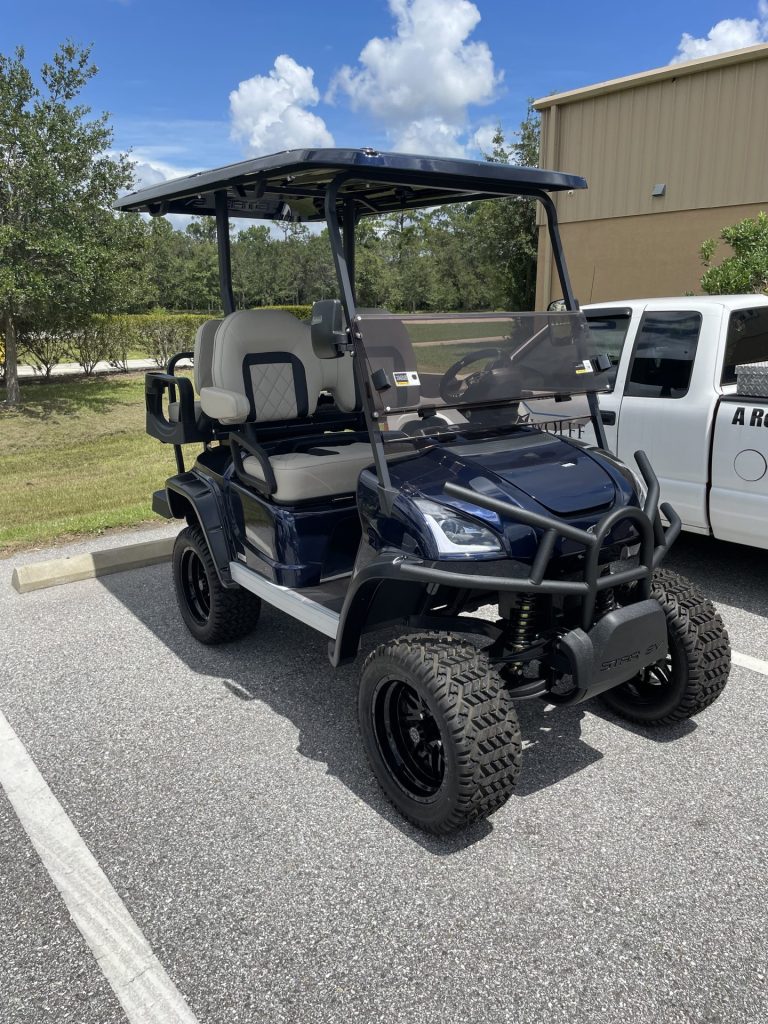

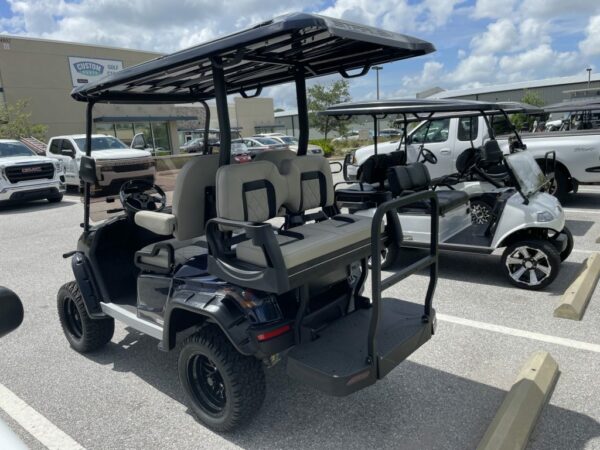

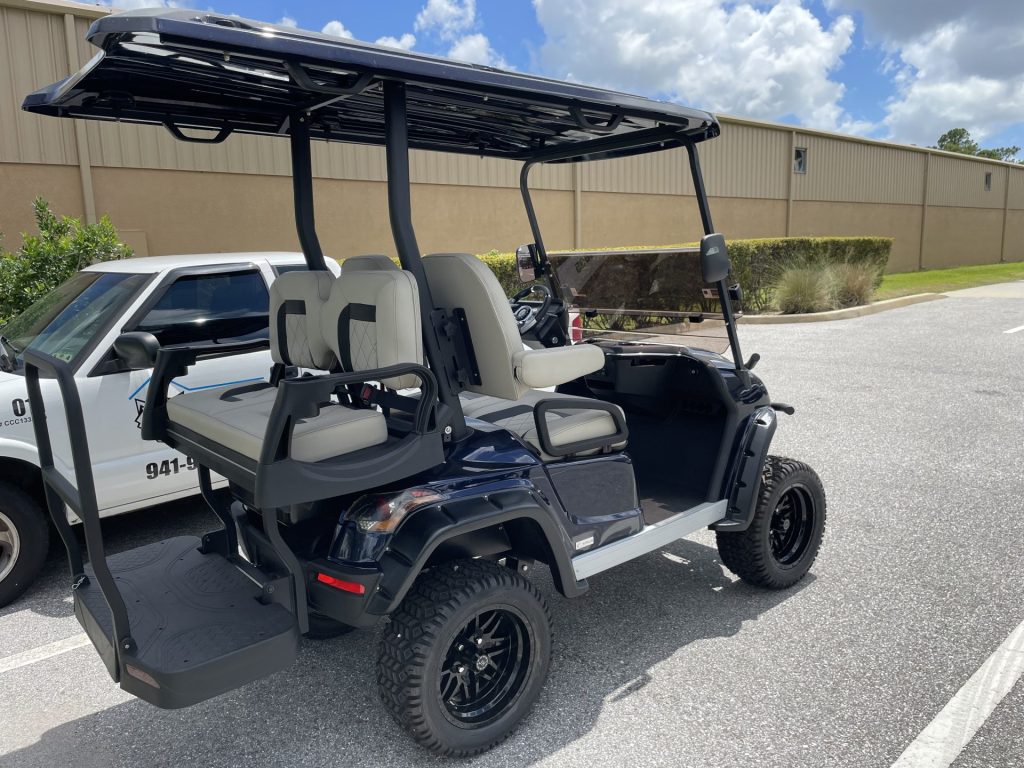

STAREV 2+2 SIRIUS LIFTED
| Dimensions | |
| Overall dimensions | 117” L x 47” W x 79” H (297 cm x 119 cm x 201 cm) |
| Wheel base | 66” (168 cm) |
| Ground Clearance | 5.75” (14.6 cm) |
| Wheel Type | 12” x 7” – 15mm Aluminum |
| Tire Size | 20 x 9.0-12 DOT |
| Tire Pressure | 40 psi (276 kPa) |
| Body & Chassis | |
| Chassis | Welded tubular steel |
| Body material | Plastic with Automotive paint |
| Roof Material | Plastic, injection molded |
| Side Rails | Aluminum |
| POWER | |
| Batteries | 8 x 6 V, Trojan T-105 |
| Motor | 4 kW AC with thermal protection |
| Speed Controller | 48 V, 350 A |
| Performance | |
| Passengers | 4 |
| Top Speed | 19.5 mph (25mph if LSV) |
| Turning Radius | 10.5 ft (3.2 m) |
| Load Capacity | 800 lbs (363 kg) |
| Weight with Batteries | 1402 lbs (636 kg) |
| Brake System | Rear Drum |
| Drive train | Direct rear drive with 12.4:1 ratio |
| Suspension & Steering | |
| Steering System | 3 spoke aluminum with self-canceling |
| Steering Pack | Self compensated rack and pinion |
| Front Suspension | Adjustable coil over shock, independent |
| Rear Suspension | Adjustable coil over shock |
